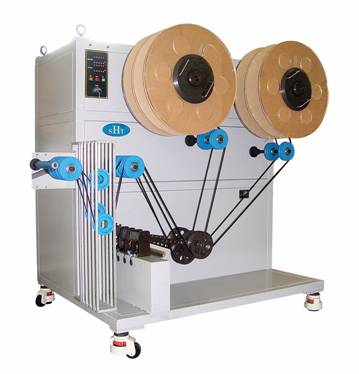

CARRIER TAPE TRAVERSE WINDING MACHINE

Model number: SHT-TR2A4B

Traverse Winding Machinewith 160mm bobbin width and dual axles

Performance  :    Winding Speed – Maximum 300meters/hour

               Width of bobbin – Maximum 160mm

 Control system :   PLC programmable control

 Winding row  :     8mm x 4 row, 12mm x 4 row, 16mm x 3 row, 24mm x 2 row

 Winding section:   Dual axlesInside diameter – 13mm, 25mm, 76mm (3inch bobbin)

                               Outside diameter – 580mm

 Drive unit     :      Travers – Servo motor

                    Winding – Geared brake motor 60W, AC200V, 50/60Hz, three phase

                    Reel width – Minimum 0.1mm

Machine size    :  1,500mm (length), 1,580mm (height), 1,010mm (width)

 Machine weight :  150kg

 Facilities          :  AC220V, 60/50Hz, three phase
