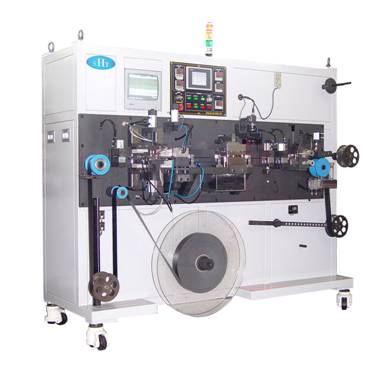

Model number: SHT-W88PL

Carrier Tape Forming Machine with 88mm tape width and 700 meters output per hour

Production Speed: 60shots / minute

Width of Type     : 88mm / maximum

Pocket Depth     : 12mm / maximum

Production row   : Single row , Multi row up to 4 lane

                        12mm×4row       48mm×60shots×60minutes×4lines = 691meters/hour

                        16mm×3row     48mm×60shots×60minutes×4lines = 518meters/hour

 24mm×2row     48mm×60shots×60minutes×3lines = 345meters/hour

 32mm×2row     48mm×60shots×60minutes×2lines = 345meters/hour

 44mm×2row     48mm×60shots×60minutes×2lines = 345meters/hour

 56mm×1row     48mm×60shots×60minutes×1lines = 172meters/hour

 64mm×1row     48mm×60shots×60minutes×1lines = 172meters/hour

 72mm×1row     48mm×60shots×60minutes×1lines = 172meters/hour

 88mm×1row     48mm×60shots×60minutes×1lines = 172meters/hour

Base Material      : PS, PVC, A-PET & PC with Conductive & Non-conductive

Control System    : PLC Control (Programmable control) & Touch Panel

Un-winder Section: Geared brake motor 60W, AC 220V, Three phase, 60Hz

   Inside diameter ¢76mm (3inch bobbin) / Outside diameter ¢560mm

Heating Section   : Two-steps heating

    Pre heating / Forming heating

    Cartridge heater 200W*4ea,AC 220V, Single phase

Forming Section  : Air pressure system, Female Type Mould

Piercing Punching Section: Press punching system

CAM Drive Unit   : Feed CAM 48mm (standard) / 40, 32, 28, 56mm (option)

                             Mould CAM / Die CAM

                             Geared motor 0.75kw,inverter control, AC 220V three phase, 60Hz

Cooling System  : Water Circulation, Water Pump Motor 230W, AC 220V

Single phase, 60Hz, Water Tank Sus 15liters

Refrigerator to be integrated inside

Installation Area  : 160cm*160*180cm (L*H*W)

Machine Weight 500kg

Air supply 5~7bar

Power supply AC 220V, Three phase, 60Hz

Cutting Unit      : Air Cylinder Cutting

Slitting section  : Rotary cutter

Winding section: Inside diameter ¢13 & ¢76mm

                      Outside diameter ¢560mm max gear motor 60W

Option            : Piercing punching, Traverse winding machine, Vision system
