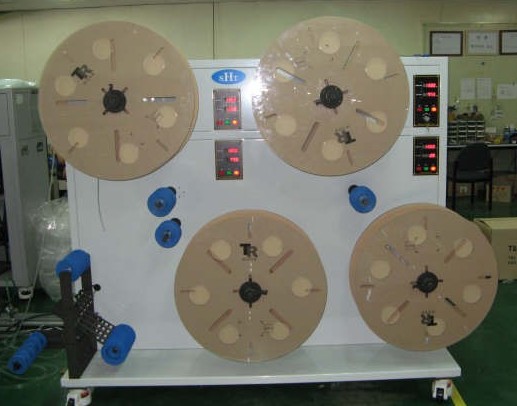

CARRIER TAPE TRAVERSE WINDING MACHINE

Model number: SHT-TR4A4B

Traverse Winding Machine with 160mm bobbin width and quad axles

Performance      :    Winding Speed – Maximum 450meters/hour

                   Width of bobbin – Maximum 160mm

 Control system  :     PLC programmable control

 Winding row      :    8mm x 4 row, 12mm x 4 row, 16mm x 4 row, 24mm x 3 row

 Winding section :    Quad axles

                            Inside diameter – 76mm(3inch bobbin)

                            Outside diameter – 580mm

 Drive unit          :    Travers – Servo motor

                       Winding – Geared brake motor 60W, AC200V, 50/60Hz, three phase

                       Reel width – Minimum 0.1mm

Machine size    :    1,500mm (length), 1,580mm (height), 1,010mm (width)

 Machine weight :    150kg

 Facilities          :    AC220V, 60/50Hz, three phase
