Model number: SHT-W88ST96

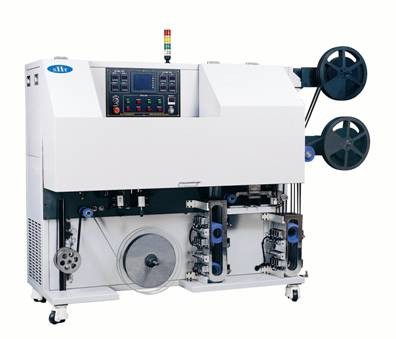

Carrier Tape Forming Machine with 88mm tape width and 1,600mm output per hour

Production Speed :   70shots / minute

Width of Type      :    88mm / maximum

Pocket Depth      :   12mm / maximum

Control System   :    PLC Control (Programmable control) & Touch Panel

Base Material    :    PS, PVC, PC, PET with Conductive & Non-conductive

Production row   :    Multi row (maximum speed)

                                  8mm x 4rows          96mm x 70shots x 60minutes x 4lines = 1,612meters/hour

                                                                               (** Only Male type mold is applicable for 8mm)

                           12mm×4row         96mm×70shots×60minutes×4lines = 1,612meters/hour

                           16mm×4row         96mm×70shots×60minutes×4lines = 1,612meters/hour

                           24mm×3row         96mm×70shots×60minutes×3lines = 1,209meters/hour

                           32mm×2row         96mm×70shots×60minutes×2lines = 806meters/hour

                           44mm×2row         96mm×70shots×60minutes×2lines = 806meters/hour

                                  56mm, 64mm, 72mm, 88mm x single row = each 403meters/hour

Un-winder Section:  Geared brake motor 90W, AC 220V, Three phase, 50Hz

                            Inside diameter ¢76mm(3inch bobbin)

                            Outside diameter¢750mm

Heating Section:      Two step heating


                            Forming heating

                                   Cartridge heater 300W * 8ea, AC 220V, Single phase

Forming Section   :   Compatible female and male type Mould

Punching Section :   Servo motor driven punching system

Feeding Drive Unit:   Servo motor driven standard feeding 96mm

Cooling System    :   Water Circulation, Water Pump Motor 230W, AC 220V, 50Hz,

                            Three phase, Water Tank 5liters

                            Refrigerator to be integrated inside

Slitting section     :   Rotary cutter

Winding section   :    Inside diameter ¢13 & ¢76mm

                            Outside diameter up to ¢680mm (Gear motor 40W)

Installation Area   :   2000mm(L)*1600mm(H)*850mm(W)

                            Machine Weight 700kg

                            Air supply 5~7bar

                            Power supply AC 220V, Three phase, 50Hz

Option              :     Piercing punching, Traverse winding machine, Vision system
